Offers Services For Making Detailed Project Reports(DPR), Designing, Supplying, Erection And Commissioning Of Various Material Handling Systems.

Activity

Civil engineering and public works consultants

Factories, turnkey projects

Building maintenance consultants

Building renovation consultants

Structural restoration and underpinning consultants

Building materials consultants

Construction engineering consultants

Building estimating consultants

Structural engineering consultants

Large span structure consultants

High building structures consultants

Prefabricated buildings consultants

Fabricated steelwork design consultants

We provide Construction Supervision, Monitoring and support during the building of prefabricated steel building construction supervision. JSB responsible for the expert supervision of all agreed services provided by us.
After the completion of Execution, a joint inspection is carried out by client and our experienced, specialist site manager. All services provided by JSB are checked and documented in great detail in an acceptance report.
Our Supervision results the construction of prefabricated building proceeds simply and without complications. Rely on our decades of experience in building prefabricated steel buildings, and benefit from all-round service that is second to none in the PEB construction industry.

PEB's can be fitted with diverse structural increments like trusses, mezzanine floors, fascia, canopies and crane systems according to client prerequisite. We Steel Structural Detailing is an exceptional and a quickly developing building arrangements organization. JSB Provide optimized design for Pre- Engineered Steel Buildings (Factory Buildings, Warehouse, Sheds, Industrial Buildings, Cold Storage Buildings, Auditorium, etc.) by using Autocad, Tekla and other related latest software's in accordance with various Building Codes.
JSB is among the reputed organizations, highly engaged in providing an optimum quality Pre Engineering Building Designing Service. The provided service is carried out by our skilled designers and architects using the modern designing techniques. We provide our clients an excellent solution to give the desired shape to the sheds. Further, this designing service can be availed by our precious clients at the most affordable price.

JSB Provides Pre Engineered Building Structure at Best Cost In India. We Are The Manufacturer and Supplier Of Pre Engineering Metal Building

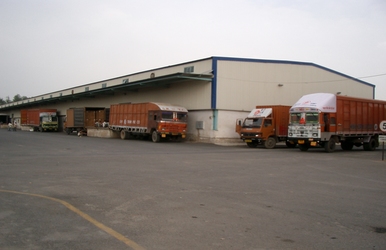

Pre-engineered building (PEB) is designed by JSB, to be fabricated using best suited inventory of raw materials available from all sources and manufacturing methods that can efficiently satisfy a wide range of structural and aesthetic design requirements. Within some geographic industry sectors these buildings are also called pre-engineered metal buildings

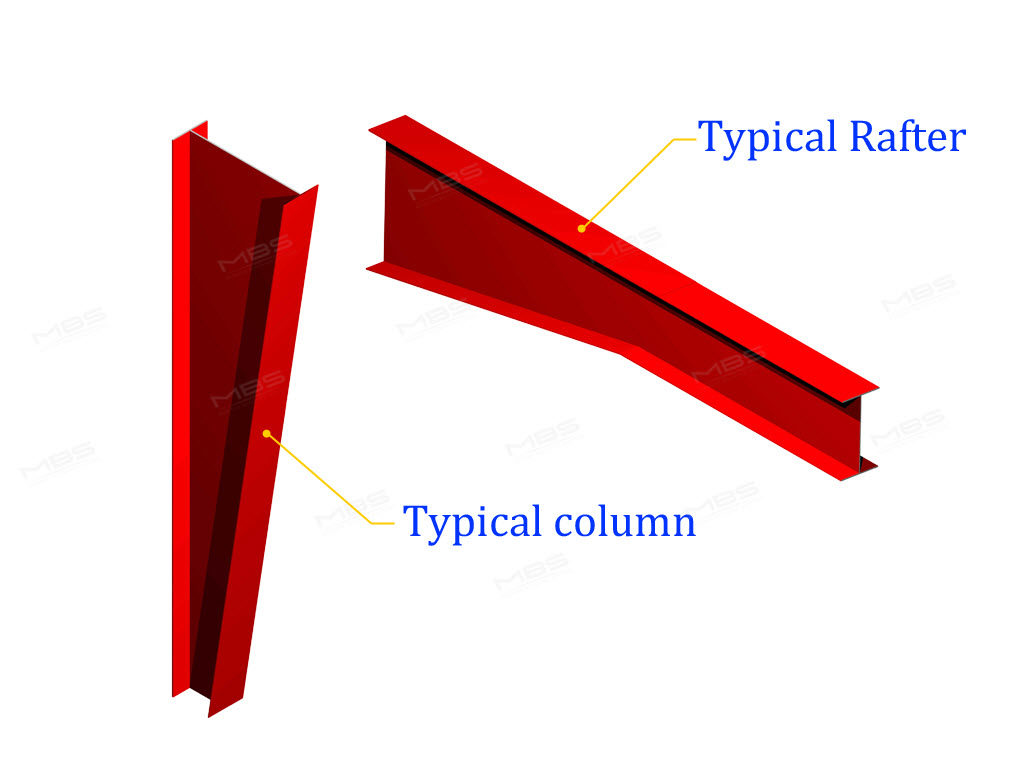

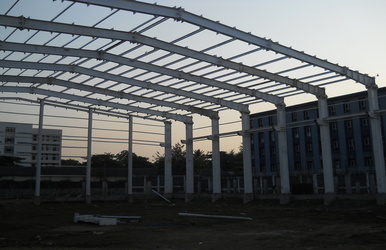

Standardized primary framing structure of a pre-engineered building is an assembly of I-shaped members, often referred to as I-beams. In pre-engineered buildings, the I beams used are usually formed by welding together steel plates to form the I section. The I beams are then field-assembled (e.g. bolted connections) to form the entire frame of the pre-engineered building. Some manufacturers taper the framing members (varying in web depth) according to the local loading effects. Larger plate dimensions are used in areas of higher load effects.
Other forms of primary framing can include trusses, mill sections rather than three-plate welded, castellated beams, etc. The choice of economic form can vary depending on factors such as local capabilities (e.g. manufacturing, transportation, construction) and variations in material vs. labour costs.
Cold formed Z- and C-shaped members may be used as secondary structural elements to fasten and support the external cladding. Roll-formed profiled steel sheet, wood, tensioned fabric, precast concrete, masonry block, glass curtainwall or other materials may be used for the external cladding of the building.

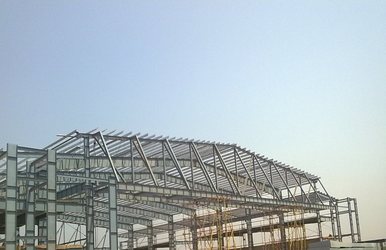

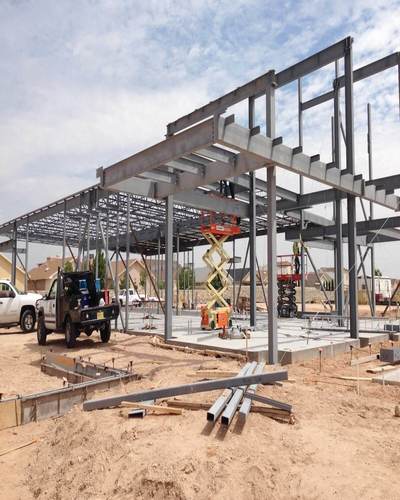

JSB having specialized and experienced team to Erect the structural items such as columns, rafters, beams, purlins, tie rods, sheets, wall cladding/roofing insulation, hardware etc as per approved drawings / BoM. JSB shall also carry out necessary finishing activities such as painting etc. JSB Erection of pre-engineered buildings and steel structure is the last step in our building process JSB ERECTION PROCEDURES AND STEPS

Build column combing with purlins (if any), brace column together. Then, continue building rafters after adjusting column.

Install the inside truss frames, and then proceed to erect the outside ones (according to the movement of truck crane – see the enclosed construction drawing)

Begin erecting from the braced bay.

Settle two construction frames at the braced position before placing new frame. This process is translated for the next frame.

Have to have temporary brace during the erection process. Use purlins with the bracing cable to locate, and link all the rafter frames.

Erect steel panel after adjusting rafter frame and straight purlin, clean up, and paint all scratches on the rafter and purlin.

Use chalks or stretch attached wires to locate or mark axis positions in order to balance the steel panel when to complete the covering.

Set foot on the bottom waves when walking on the roof. Steel panel may be crashed if stepping on the high waves, which can cause deformation or leaking.

Do not walk on bright panels.

JSB is the trusted service provider of best quality PEB Structure Maintenance Service. Our maintenance service is appreciated among customers for its exact solution and reliability.
Frequency of maintenance is dependent upon the environmental zone in which the building is located. Maintenance period vary for PEB steel building’s in different locations. During contractual maintenance period, JSB attain the client to resolve the issues on requirement.
JSB undertake the AMC for complete steel buildings after the agreed maintenance period in contract on charged basis on requirement of client.

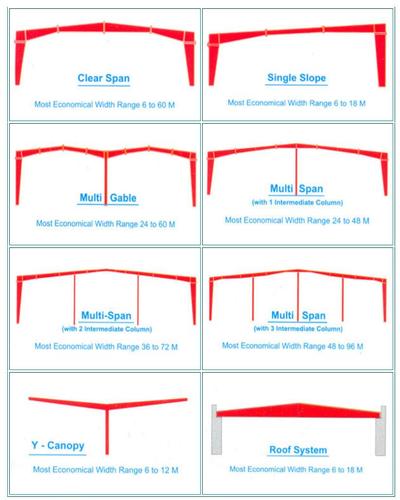

JSB Pre-Engineered buildings are custom-designed to meet the customer requirements. Any frame geometry is possible and JSB PRE-FAB design the building for specific requirements of its customer. The various and useful Primary Framing systems are shown below.

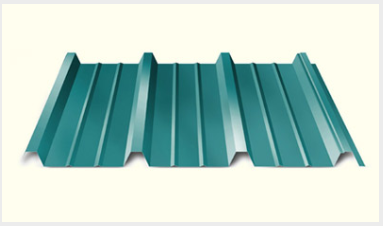

JSB PRE-FAB pre- painted sheeting is a multi-layer coating system to ensure long life and optimum coating adherence. The steel substrate is hot dipped galvanized zinc or hot dipped zinc / aluminum coated. The surface of the metal coatings is then given a series of pre treatments to ensure that they are completely clean. JSB PRE-FAB claddings can be used for roofs and walls and are available with or without insulation.

Sliding doors are used in hangars, warehouses, etc. where a larger opening into the building is required. They are not hinged but rather rollers are provided on top of the doors and this roller is placed on brackets allowing a sliding movement. These are either single leaf or double leaf.

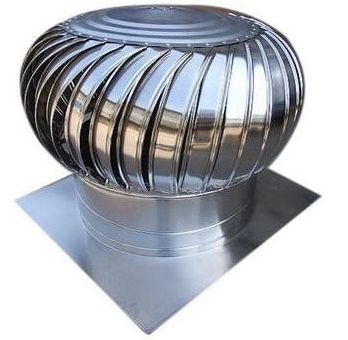

JSB Pre-Fab is the one of the leading suppliers of ventilators for Industrial Product. Procured from reliable vendors, in our range of ventilators, we offer three types of ventilators like Turbo Ventilator, S.S. Ventilator and Kool Blast Power Ventilator.

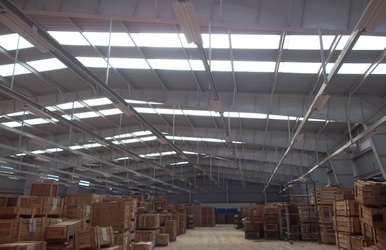

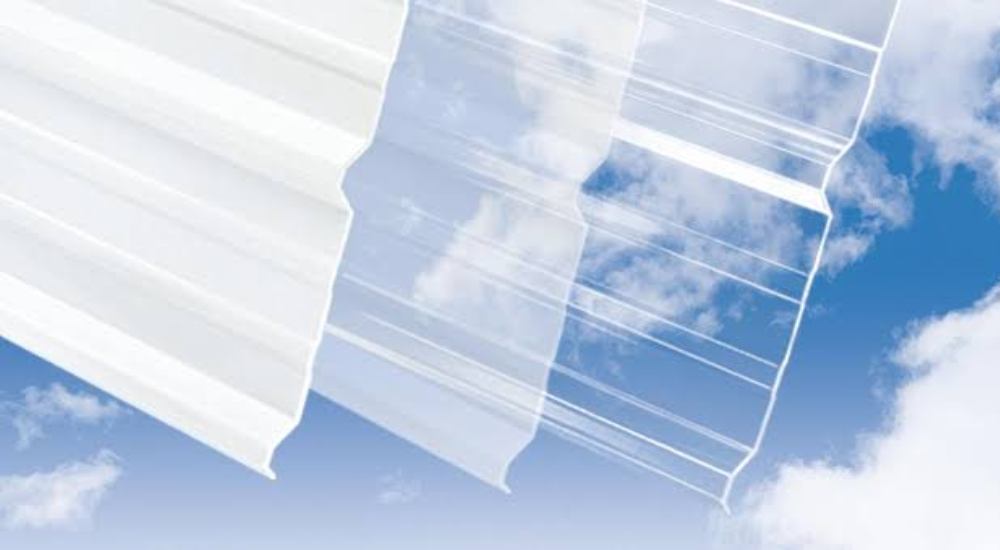

Commonly in Pre-Engineered building, Polycarbonate sheet and FRP sheet are used as daylight or wall light panel.
Fiber-reinforced plastic (FRP) (also fiber-reinforced polymer) is a composite material made of a polymer matrix reinforced with fibers. The fibers are usually glass, carbon, basalt or aramid, although other fibers such as paper or wood or asbestos have been sometimes used. The polymer is usually an epoxy, vinyl ester or polyester thermosetting plastic, and phenol is still in use. FRPs are commonly used in the aerospace, automotive, marine, and construction industries.
Polycarbonates received their name because they are polymers containing carbonate groups. Most polycarbonates of commercial interest are derived from rigid monomers. A balance of useful features including temperature resistance, impact resistance and optical properties position polycarbonates between commodity plastics and engineering plastics.

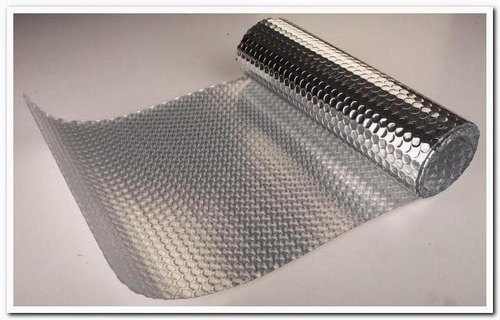

Thermal insulation in buildings is an important factor to achieving thermal comfort for its occupants. Insulation reduces unwanted heat loss or gain and can decrease the energy demands of heating and cooling systems.
It does not necessarily deal with issues of adequate ventilation and may or may not affect the level of sound insulation. In a narrow sense insulation can just refer to the insulation materials employed to slow heat loss, such as: cellulose, glass wool, rock wool, polystyrene, urethane foam, vermiculite, perlite, wood fiber, plant fiber (cannabis, flax, cotton, cork, etc.), but it can also involve a range of designs and techniques to address the main modes of heat transfer - conduction, radiation and convection materials.

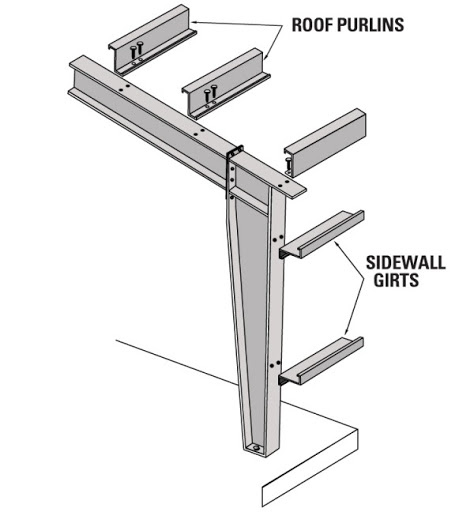

Secondary members like Purlins, girts and eave struts are load carrying members suitable to ensure the stability of the building against forces in any direction.
It is used to support the wall and roof panels. Purlins are used on the roof; girts are used on the walls and eave struts are used at the intersection of the sidewall.

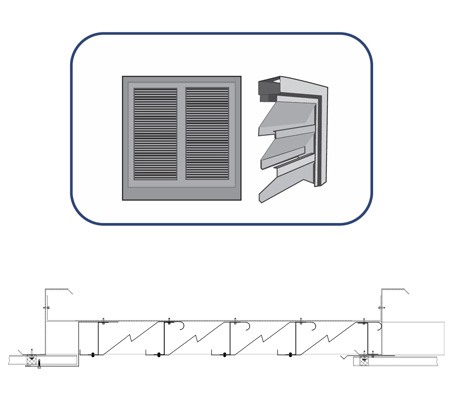

A louver is a frame containing adjustable overlapping blades which allow air flow and also block sunlight entry. The standard size available is 1m x 1m which also incorporates insect screen.

This is a gravity type ventilator which is provided with a bird screen and Mechanical Controlled Damper. Allows natural ventilation of the building.

There are many other reasons why we’re the smart choice for your building needs. After all, our products are thoughtfully engineered to support equipment of all types and environments of any kind, striking a delicate balance between lightweight construction and heavy-duty performance. And because they are easy to ship, assemble, modify, and relocate, you don’t have to worry about cutting corners to cut costs.
JSB products are pre-engineered to BIS and AISC structural standards. They’re also pre-fabricated, which means our buildings are almost completely done before they leave our factory. With simple foundation requirements and a wide variety of pre-framed panels to choose from JSB products minimize the work necessary in the field and expedite the entire construction process. In fact, our products can be constructed four times faster than conventional rigid frame metal buildings. And if you’re in need of a quick quote, our pricing turnaround on standard buildings is usually done within 24 hours. So if you need a project done fast—but done right—we’re the perfect partner for you.
